3-piece can
This is a container used for canned coffee, canned juice, etc.
Outline
- A 3-piece can is a can composed of three parts: the can body, the can end, and the can bottom end.
- By applying a gravure-printed film to the outside of the can body, it is possible to express colors that were not possible with conventional printing, providing a can with high quality printing.
- 3-piece gravure film laminated cans use a even thickness film for the internal coating, resulting in excellent corrosion resistance and flavor preservation.
Design Cans
-
Expand & Emboss Forming
By forming the can into a unique shape, the can's look and feel can be differentiated from standard cans, giving it distinctive features and a stronger appeal of the product
-
Foaming Ink
Creates a textured surface on the printed area, resulting in a visually appealing and tactile feel, and allows for matte design expression
-
Mirror-Gloss Ink
To create a glossy finish, silver ink containing aluminum powder is used. The gloss is further enhanced by changing the shape of the aluminum powder.
ECO Bead Cans
- This can is part of our environmental efforts to reduce product weight and CO2 emissions.
Applicable Contents:
Coffee, tea, fruit juices, soups, sweet rice drinks, etc.
Container Sizes:
160ml、170ml、190ml、200ml、210ml、250ml、280ml

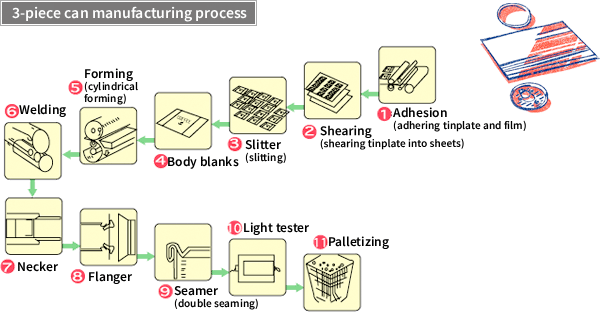

What is a 3-piece can?
A 3-piece can is a can composed of three parts: the can body, the can end, and the can bottom end.,
|
Step 1: A printed film is applied to the outer side of a coil of tinplate, and a transparent film is applied to the inside. |
|---|---|
|
Step 2: The coil of tinplate with the film applied to the inside and outside is sheared into a sheet. |
|
Step 3: The sheet of tinplate is further sheared to the size of one can. |
|
Step 4: Plates (body blanks) are sheared to the size of one can. |
|
Step 5: The body blank is formed into a cylindrical shape. |
|
Step 6: The cylindrical body blank is welded. |
|
Step 7: The neck of the welded body blank is formed. |
|
Step 8: Flange is formed on the welded body blank for seaming the end. |
|
Step 9: The end is seammetto the can body through double seaming method. |
|
Step 10: A light tester is used to check for the presence of pinholes. |
|
Step 11: The products are palletized. |

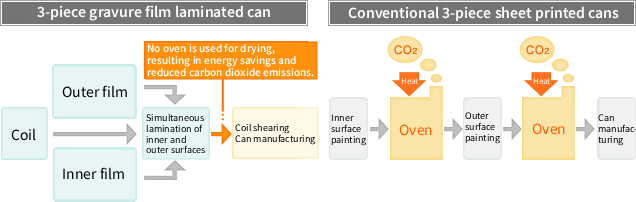

3-Piece Gravure Film Laminated Cans
We developed the 3-piece gravure film laminated can technology with the aim of "simplifying the printing process" and "improving printing quality."
Lower Energy Consumption During Manufacturing:
The process of drying the coating in an oven, which is necessary in conventional printed cans, has been eliminated, reducing energy consumption during can manufacturing.
High End Printing Quality.
Gravure 8-color printing allows for pearlescent and photographic printing, which was previously not possible
Excellent Corrosion Resistance and Flavor Preservation.
The interior is coated with a film of uniform thickness, resulting in excellent corrosion resistance and flavor, making it suitable for all contents.
