New Bottle Can
The new bottle can is a new type of container developed by Daiwa Can that adds resealability and fashionable design to the advantages of conventional metal containers.
Outline
- Resealable, allowing for small serve beverages. Also easy to carry.
- The cap, can body, and bottom end are all made of aluminum, making it highly recyclable.
- The amount of heat energy and water used in the can manufacturing process is greatly reduced, making it an environmentally friendly product. Film-based material
Possible Contents
- RTD coffee beverages, fruit juices, tea-based beverages, carbonated beverages, alcohol
Specifications
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Exterior Appearance |
|
|
|
|
|
|
| Capacity | 500ml | 300ml | 300ml | 400ml | 290ml | 300ml |
| Spout Diameter (mm) | 28 | ← | ← | 38 | ← | 28 |
| Can Body Diameter（㎜） | 66 | ← | 59 | 66 | ← | 59 |
| Height (mm)※１ | 196 | 133 | 160 | 164 | 131 | 162 |
| Remarks | ※2 | ※3：For wine only |
※1：Height excluding cap
Drinking Cup *2 (for No. 2 shape only)
- Attachment of drinking cups allows for convenient drinking in vehicles or outdoors.
- Available in two shapes (square and helmet-shaped).
- Used for wine and Japanese sake.
- Square cups can be stacked.

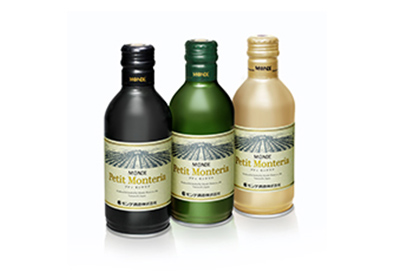

Slim Wine Bottle Can *3 No. 6 shape only (for wine only)
- This new container shape proposes a new way to enjoy wine.
- Purchasing scenarios can be expended such as new wine customers' purchasing through convenience stores and supermarkets.
- The inner coating is specially designed with enhanced corrosion resistance, making it possible to fill wine, which was previously considered difficult.
What is the New Bottle Can?

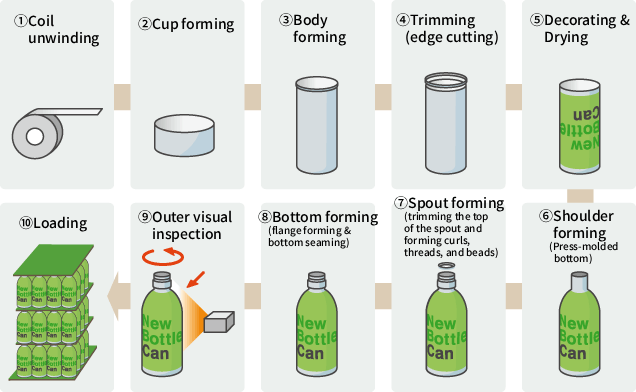

The New Bottle Can is a resealable can consisting of three parts: the cap, can body, and a bottom end. Manufacturing is done through the following process:

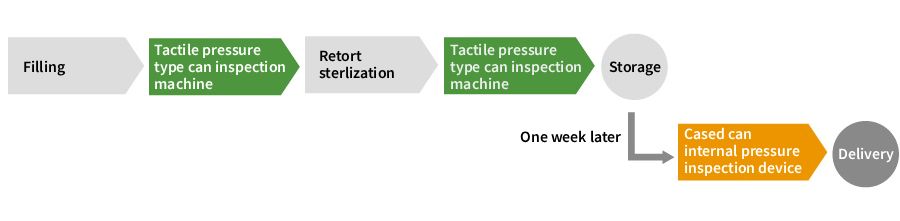

Quality Assurance of Retort Products
Neutral beverages with long shelf life require
high-temperature, long-period retort sterilization, but to
prevent shipment of sterilization failed products, cased
products are generally inspected before shipping.
The New Bottle Can is designed so that case can internal
pressure inspection after retort sterliazation can be
carried out.
Tactile pressure type can inspection machine Inspects capping defects after filling and retort sterilization process using high-precision double-roll method.
Cased can Internal Pressure Inspection Machine Inspects cans in cases before shipping, ensuring a thorough quality assurance.
