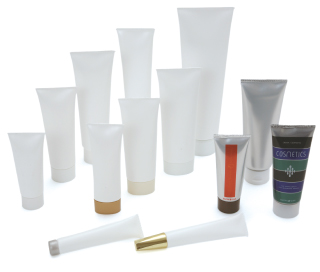

Plastic Tube
Plastic tubes primarily used for cosmetics and other similar products.
Outline
- Available tube diameters are Φ16 to 55.
- We offer a variety of general-purpose caps and screw thread shapes
- Single-layer and multi-layer (2-layer and 3-layer) options are available for all sizes
- A wide range of decorations are possible
- Aluminum laminated tubes are also available.
Size and Specification Variations
Round Tube
| Tube body diameter (mm) | Φ16 | Φ19 | Φ22 | Φ25 | Φ30 |
| Tube length (mm) | 50～95 | 55～105 | 55～115 | 70～120 | 70～140 |
| Content Volume (g) | 6～14 | 9～22 | 12～33 | 21～44 | 28～74 |
| Tube body diameter (mm) | Φ35 | Φ40 | Φ45 | Φ50 | Φ55 |
| Tube length (mm) | 90～160 | 95～170 | 100～195 | 100～195 | 120～195 |
| Content Volume (g) | 53～118 | 69～155 | 89～225 | 95～274 | 149～322 |
Oval Tube
| Tube body diameter (mm) | Φ22 | Φ25 | Φ30 | Φ35 | Φ40 | Φ45 |
| Tube length (mm) | 55～115 | 70～115 | 85～140 | 85～160 | 95～170 | 105～185 |
| Content Volume (g) | 9～29 | 18～35 | 33～66 | 45～111 | 65～147 | 101～212 |
Aluminum Laminated Tube
| Tube body diameter (mm) | Φ22 | Φ25 | Φ30 | Φ35 | Φ40 |
Round Tube
Oval Tube
Aluminum Laminated Tube
＊The stated volume is an estimate. Please confirm by filling and testing the actual product with the contents.
＊The tube body may swell after filling. It is recommended that designing of the shipping box is done using the actual product after filling.
＊Volume and tube size are standard values (before decoration, standard colors). Actual measurements may differ.
＊Please note specifications and standards may change.
Decoration and Secondary Processing
Decoration
- Off-set Printing (up to 6 colors)
- Screen Printing (up to 3 colors)
- Hot Stamping
- Labelling
- Aluminum laminate tubes（Φ22、Φ25、Φ30、Φ35、Φ40）
Secondary Processing
- End seal, virgin seal
Responding to Customers' Needs
①Small Lot Orders
- Minimum order quantity: 3,000 units (excluding some specifications; please inquire for details.)
- Coloring of tubes and caps available from the minimum order quantity.
- Tube size (diameter and length) can be set for each product.
②Proof Print Confirmation
- For all new products, color tone can be confirmed in advance using a proof print.
③New Materials.
- We are happy to discuss needs regarding new materials (i.e. environmentally friendly materials).
